Convert the given n-ary tree to its mirror image

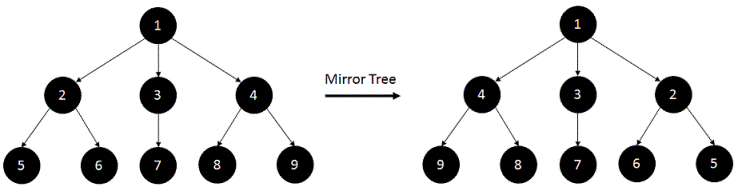

Given an n-ary tree, convert it to its mirror images as shown below.


Notice how for every sub-tree the order of the children is reversed in its mirror image. This problem is similar to the problem of Converting a binary tree to its mirror tree.


Video coming soon!



Subscribe for more updates


Algorithm/Insights

The idea is to use a traversal similar to post-order traversal for converting a given n-ary tree into its mirror image. The algorithm is very similar to the algorithm of creating a mirror tree for a binary tree. You might want to check out this post.

In function convertToMirror(TreeNode root), first we convert all sub-trees rooted at child nodes of root to their mirror images(by making recursive calls) and then reverse the order of child nodes themselves.

The time complexity for this approach would be O(n). In the code snippet, checkout function convertToMirror(TreeNode root) for implementation details.


Algorithm Visualization




Code Snippet


import java.util.ArrayList;
import java.util.Collections;
import java.util.LinkedList;

/**
 * <b>IDeserve <br>
 * <a href="https://www.youtube.com/c/IDeserve">https://www.youtube.com/c/IDeserve</a>
 * O(n) solution to convert a given n-ary tree into its mirror image.
 * @author Nilesh
 */

public class MirrorTree
{
    class QueueNode
    {
        TreeNode node;
        int level;

        QueueNode(TreeNode node, int level)
        {
            this.node = node;
            this.level = level;
        }
    }

    class TreeNode
    {
        private int data;
        ArrayList<TreeNode> children;

        public TreeNode(int data)
        {
            this.data = data;
            children = new ArrayList();
        }
    }

    private TreeNode root;

    public void convertToMirror()
    {
        convertToMirror(root);
    }

     private void convertToMirror(TreeNode root)
    {
        if(root == null) {
            return;
        }

        // create mirror images of sub-trees rooted at child nodes
        for (int i = 0; i < root.children.size(); i++)
        {
            convertToMirror(root.children.get(i));
        }

        // now reverse the order of child nodes
        Collections.reverse(root.children);
    }

    /*
     * Create a sample tree
     *                  1
     *           2      3      4
     *         5  6     7     8  9
     *
     */
    public void createSampleTree()
    {
         TreeNode n1 = new TreeNode(1);
         TreeNode n2 = new TreeNode(2);
         TreeNode n3 = new TreeNode(3);
         TreeNode n4 = new TreeNode(4);

         TreeNode n5 = new TreeNode(5);
         TreeNode n6 = new TreeNode(6);
         TreeNode n7 = new TreeNode(7);
         TreeNode n8 = new TreeNode(8);
         TreeNode n9 = new TreeNode(9);

         root = n1;

         root.children.add(n2);
         root.children.add(n3);
         root.children.add(n4);

         n2.children.add(n5);
         n2.children.add(n6);

         n3.children.add(n7);

         n4.children.add(n8);
         n4.children.add(n9);
    }


    public void printLevelOrder()
    {
        if (root == null) return;

        LinkedList<QueueNode> queue = new LinkedList();

        queue.add(new QueueNode(root, 0));

        int maxLevelVisited = -1;

        while (!queue.isEmpty())
        {
            QueueNode currentQueueNode = queue.remove();

            if (currentQueueNode.level > maxLevelVisited)
            {
                System.out.print("\n Level-" + currentQueueNode.level + ": ");
                maxLevelVisited = currentQueueNode.level;
            }
            System.out.print(currentQueueNode.node.data + " ");

            for (int i = 0; i < currentQueueNode.node.children.size(); i++)
            {
                queue.add(new QueueNode(currentQueueNode.node.children.get(i),  currentQueueNode.level + 1));
            }
        }

    }


    public static void main(String[] args) {
        MirrorTree tree = new MirrorTree();

        /*
         * Create a sample tree
         *                  1
         *           2      3      4
         *         5  6     7     8  9
         *
        */
        tree.createSampleTree();
        System.out.print("Original tree level order trvaersal:");
        tree.printLevelOrder();

        tree.convertToMirror();

        /*
         * Converted mirror tree
         *                  1
         *          4      	3      2
         *        9  8      7     6  5
         *
        */
        System.out.print("\n\nMirror tree level order trvaersal:");
        tree.printLevelOrder();
    }
}


Order of the Algorithm

Time Complexity is O(n)
Space Complexity is O(1)
