Sum of Two Linked Lists using Recursion | Set 2

In this post we have covered the recursive solution for finding out sum of numbers represented by linked lists. In that question though, a number was represented in such a way that its unit digit was placed at the end of the linked list. For example, number 98734 would be represented as 9->8->7->3->4.

In this problem, a number is represented in reverse fashion, that is its unit digit is placed at the beginning of the linked list. For example, number 98734 is represented as 4->3->7->8->9. Given this representation, write a program that takes input as two linked lists(which represent two numbers) and returns output as the linked list which is sum of two numbers represented by input linked lists.

Example:
Input: 1->7->9->9->9->null(number 99971), 8->9->9->null(number 998).
Output: 9->6->9->0->0->1->null(number 100969)


Video coming soon!



Subscribe for more updates


Algorithm/Insights

This problem could be solved using either recursive or iterative method. We describe the algorithm for recursive method below along with its pictorial representation. Iterative algorithm is very similar and it is also implemented using function addListsIterative(ListNode node1, ListNode node2) in the code snippet below. You can check the code snippet for details.

Recursive Algorithm: Since first nodes of linked lists point to unit digit of respective numbers they are representing, we think this algorithm is relatively easy to understand than this algorithm where last nodes of lists point to unit digits of respective numbers.

If function addListsRecursive(ListNode node1, ListNode node2, int carry) implements the algorithm then the steps of this function are as following -
1. First call to addListsRecursive(ListNode node1, ListNode node2, int carry) is made with 'node1' as first node of first input list, 'node2' as first node of second input list and carry as 0.
2. Base case: If 'node1' and 'node2' both are null then we check if 'carry' is greater than 0. If 'carry' is greater than 0, then we create a node with value as 'carry' and return this node. But if 'carry' is 0 then we return null from this function.
Recursive Steps:
3. If 'node1' is not null, we assign value of 'node1' to 'value1' otherwise we assign 0 to 'value1'. Similarly, if 'node2' is not null, we assign value of 'node2' to 'value2' otherwise we assign 0 to 'value2'.
4. Using 'value1' and 'value2' from above step and using 'carry' from the argument to this function, we compute 'sum' and 'carry' as: sum = (value1+value2+carry)%10, carry = (value1+value2+carry)/10.
5. Now we create a new node say 'currentHead' with its value as 'sum'(computed in step #4).

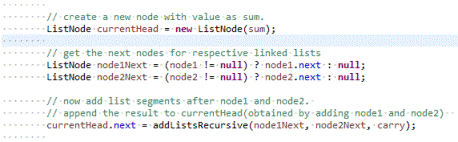

6. To add the remaining segments of linked lists which would be segments after 'node1' and 'node2', we make a recursive call as : addListsRecursive(node1Next, node2Next, carry) where 'node1Next' and 'node2Next' are the next nodes of 'node1' and 'node2' respectively in their corresponding lists and 'carry' is computed in step #4. The resultant list returned by this recursive call is appended to 'currentHead' created in step #5. Please note that next node of a null node is considered as null node. This step is implemented as following:

7. Since 'currentHead' now points to the first node of the resultant list obtained by adding lists starting from 'node1' and 'node2' onwards, we return 'currentHead' from this function to the calling function.

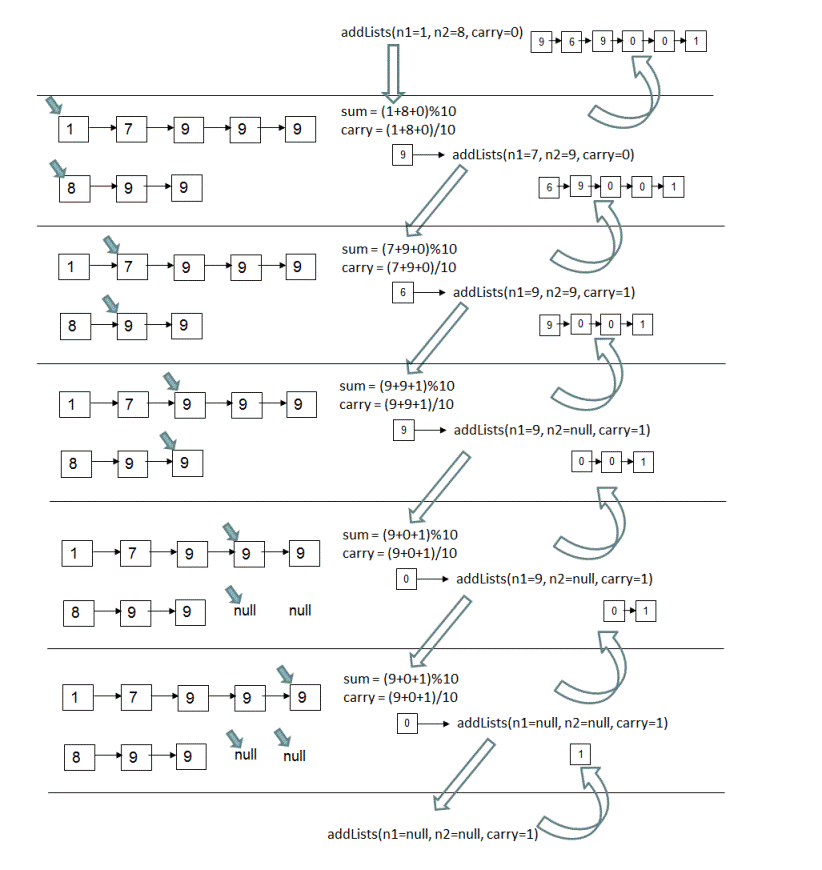

For more clarity, you may want to refer to following pictorial representation of this algorithm for input lists as 1->7->9->9->9->null(number 99971) and 8->9->9->null(number 998).


The time complexity of both recursive and iterative algorithm is O(n).


Algorithm Visualization




Code Snippet


package com.ideserve.nilesh.questions;

/**
 * <b>IDeserve <br>
 * <a href="https://www.youtube.com/c/IDeserve">https://www.youtube.com/c/IDeserve</a>
 * Add two numbers represented by linked lists using recursion in O(n) time.
 * @author Nilesh
 */
public class AddNumbersLinkedList
{
    private class ListNode
    {
        int value;
        ListNode next;

        ListNode(int value)
        {
            this.value = value;
        }
    }

    ListNode head;

    // appends newNode at the end the currentNode and returns newNode
    private ListNode appendNode(ListNode currentNode, ListNode newNode)
    {
        if (currentNode == null)
        {
            return newNode;
        }

        currentNode.next = newNode;
        return newNode;
    }

    // adds node at the beginning of the list
    private void addNode(int value)
    {
        if (head == null)
        {
            head = new ListNode(value);
            return;
        }

        ListNode n = new ListNode(value);
        n.next = head;
        head   = n;
    }

    // creates and returns a new list with node values taken from number[] array
    public ListNode createLinkedList(int[] number)
    {
        // if the head is pointing to some existing list, make it null
        // let the clients handle and store the reference to head
        if (head != null)
        {
            head = null;
        }

        if (number != null)
        {
            for (int i = 0; i < number.length; i++)
            {
                addNode(number[i]);
            }
        }

        return head;
    }

    public void printList(ListNode head)
    {
        ListNode temp = head;

        while (temp != null)
        {
            System.out.print(temp.value + "->");
            temp = temp.next;
        }
        System.out.print("null");
    }

    /*
     * node1 and node2 are corresponding nodes and carry is taken from addition of previous pair of
     * corresponding nodes.
     */
    private ListNode addListsRecursive(ListNode node1, ListNode node2, int carry)
    {
        // base case: If we are done with adding both lists
        if (node1 == null && node2 == null)
        {
            if (carry > 0)
            {
                return new ListNode(carry);
            }
            return null;
        }

        // if a node is null, we consider its value as 0
        int value1 = (node1 != null) ? node1.value : 0;
        int value2 = (node2 != null) ? node2.value : 0;

        // calculate sum and carry by using values of corresponding nodes
        int sum = (value1 + value2 + carry) % 10;
        carry   = (value1 + value2 + carry) / 10;

        // create a new node with value as sum.
        ListNode currentHead = new ListNode(sum);

        // get the next nodes for respective linked lists
        ListNode node1Next = (node1 != null) ? node1.next : null;
        ListNode node2Next = (node2 != null) ? node2.next : null;

        // now add list segments after node1 and node2.
        // append the result to currentHead(obtained by adding node1 and node2)
        currentHead.next = addListsRecursive(node1Next, node2Next, carry);

        return currentHead;
    }

    private ListNode addListsIterative(ListNode node1, ListNode node2)
    {
        // create an empty linked list with head as result node
        ListNode result = createLinkedList(null);

        // used for keeping track of the last node of the resultant linked list
        ListNode tempTail = result;

        int sum = 0, carry = 0;
        while ((node1 != null) || (node2 != null))
        {
            // if a node is null, we consider its value as 0
            int value1 = (node1 != null) ? node1.value : 0;
            int value2 = (node2 != null) ? node2.value : 0;

            // calculate sum and carry by using values of corresponding nodes
            sum = (value1 + value2 + carry) % 10;
            carry   = (value1 + value2 + carry) / 10;

            // append the newly created node to existing list
            tempTail = appendNode(tempTail, new ListNode(sum));

            // if this iteration adds the first node to result,
            // then make result point to this first node
            if (result == null)
            {
                result = tempTail;
            }

            // advance both lists if possible
            if (node1 != null)
            {
                node1 = node1.next;
            }

            if (node2 != null)
            {
                node2 = node2.next;
            }
        }

        if (carry > 0)
        {
            tempTail = appendNode(tempTail, new ListNode(carry));
        }

        return result;
    }

    public ListNode addLists(ListNode node1, ListNode node2)
    {
        return addListsRecursive(node1, node2, 0);
    }


    public static void main(String[] args)
    {
        AddNumbersLinkedList solution = new AddNumbersLinkedList();

        int[] firstNumber  = {9,9,9,7,1}; // number: 99971
        int[] secondNumber = {9,9,8}; // number: 998

        // 1->7->9->9->9->null
        ListNode head1 = solution.createLinkedList(firstNumber);

        // 8->9->9->null
        ListNode head2 = solution.createLinkedList(secondNumber);

        ListNode result = solution.addLists(head1, head2);

        System.out.print("Resultant sum represented as a linked list is: \n");
        solution.printList(result);
    }
}


Order of the Algorithm

Time Complexity is O(n)
